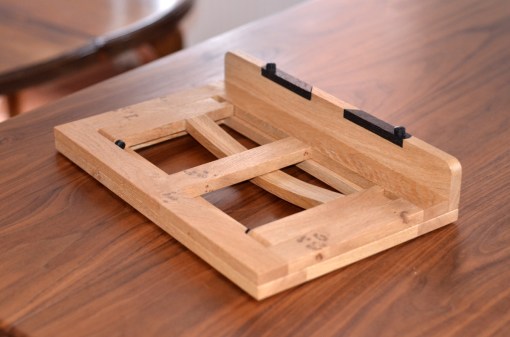

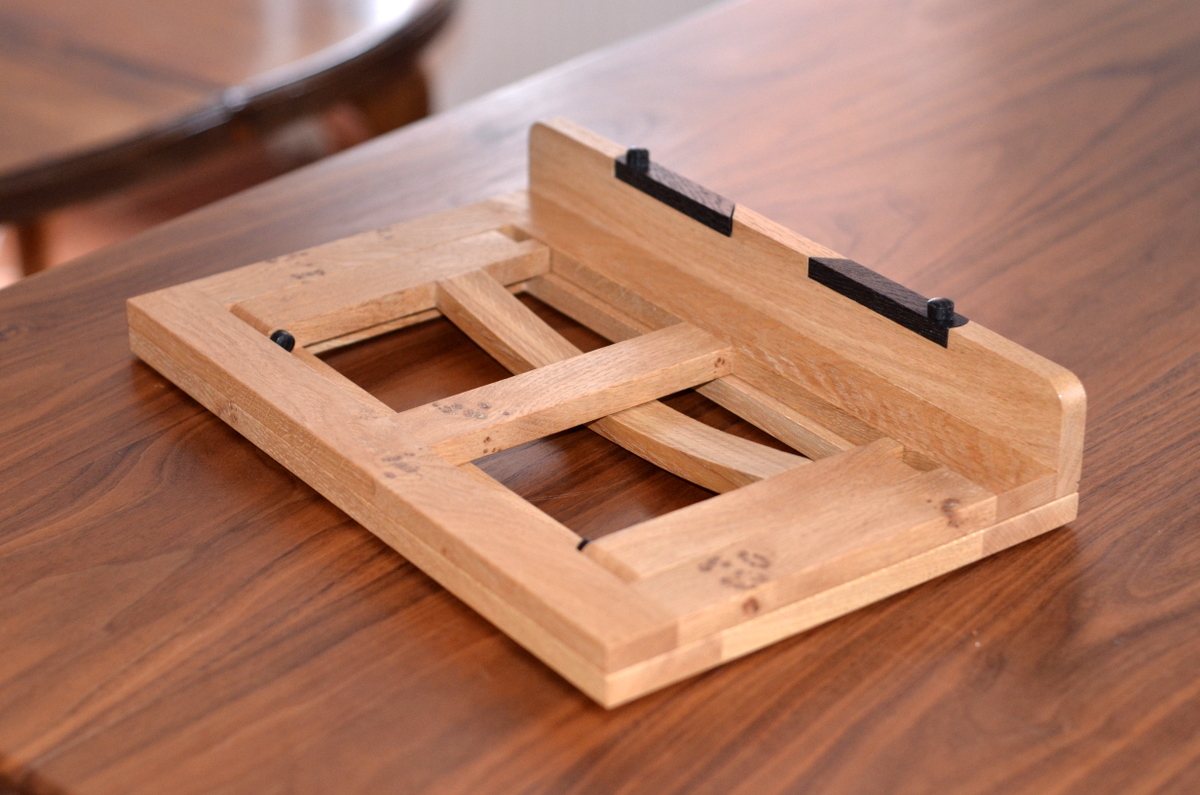

Recent posts have been about experiments or jigs or tools so, to make a change, here’s a folding book (or music) stand in pippy English oak.

I’ve made quite a few of these in various woods and various sizes. After the curves of violins and guitars, it’s a pleasure to make something based on a right angle. They make good presents for musicians and bibliophiles. And people who like to cook find them useful for holding recipe books open.

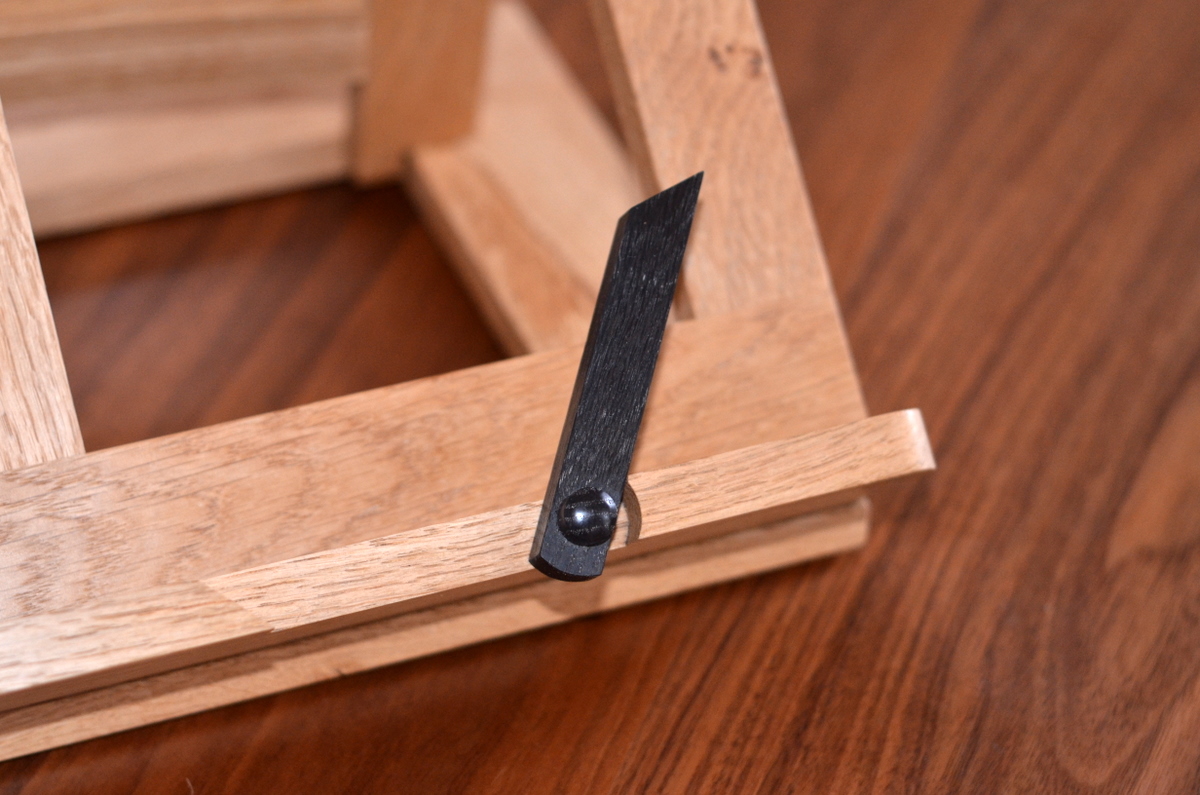

The arms that hold the pages open are in bog oak…





… and so are the dowels which act as hinges for the frame that props the stand open.

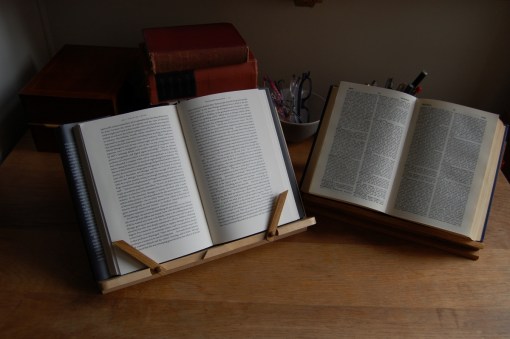

Here are a couple more. The one on the left is is sycamore, with page holding arms and dowels of laburnum.





The construction is fairly straightforward. The only tricky bits are in making a neat job where the arms that keep the book open fit into the bottom ledge and in constructing the curved stretcher of the frame that allows the stand to fold up when not in use. I’d be happy to give more details if anyone is interested.

A comment on the previous post asked about setting the honing angle.

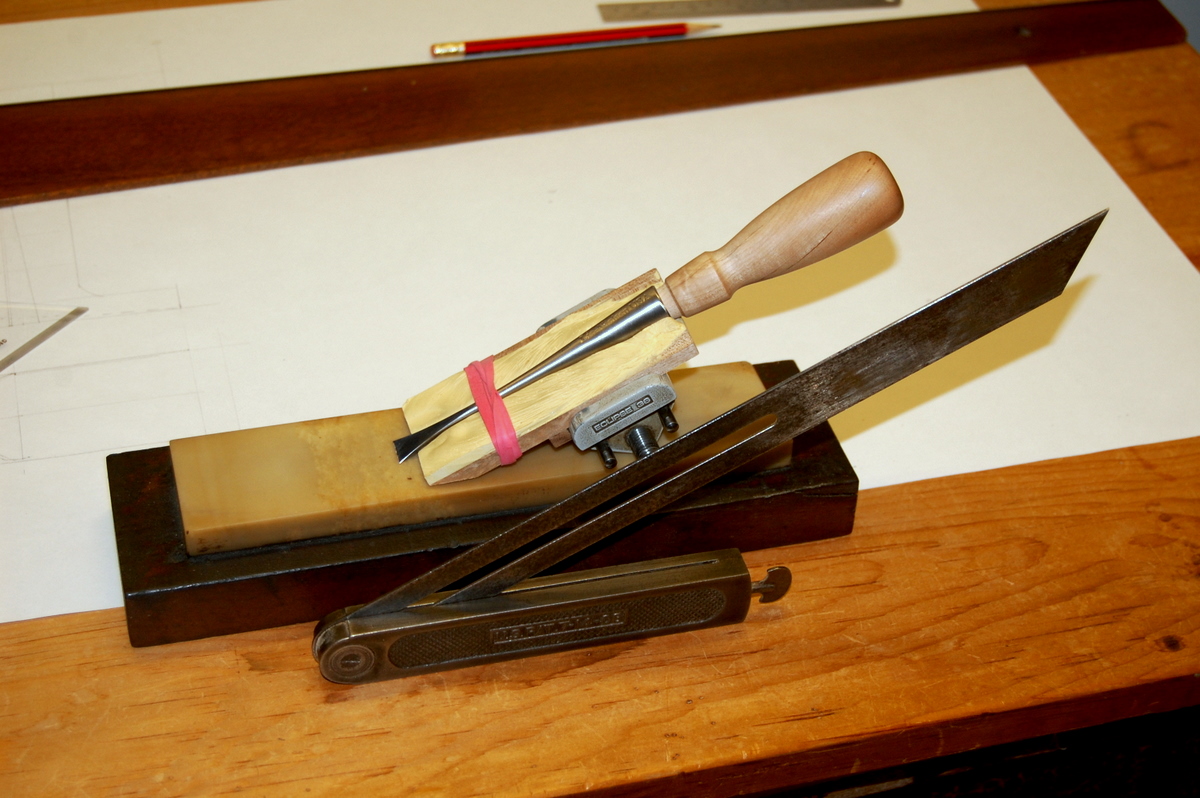

Here’s one way of doing it. Set a sliding bevel to the angle you’re after. (I chose 30°.) Then, after fitting the chisel into the mould, adjust the position of the mould in the honing jig, by eye, so that the longitudinal axis of the chisel runs parallel with the blade of the sliding bevel.

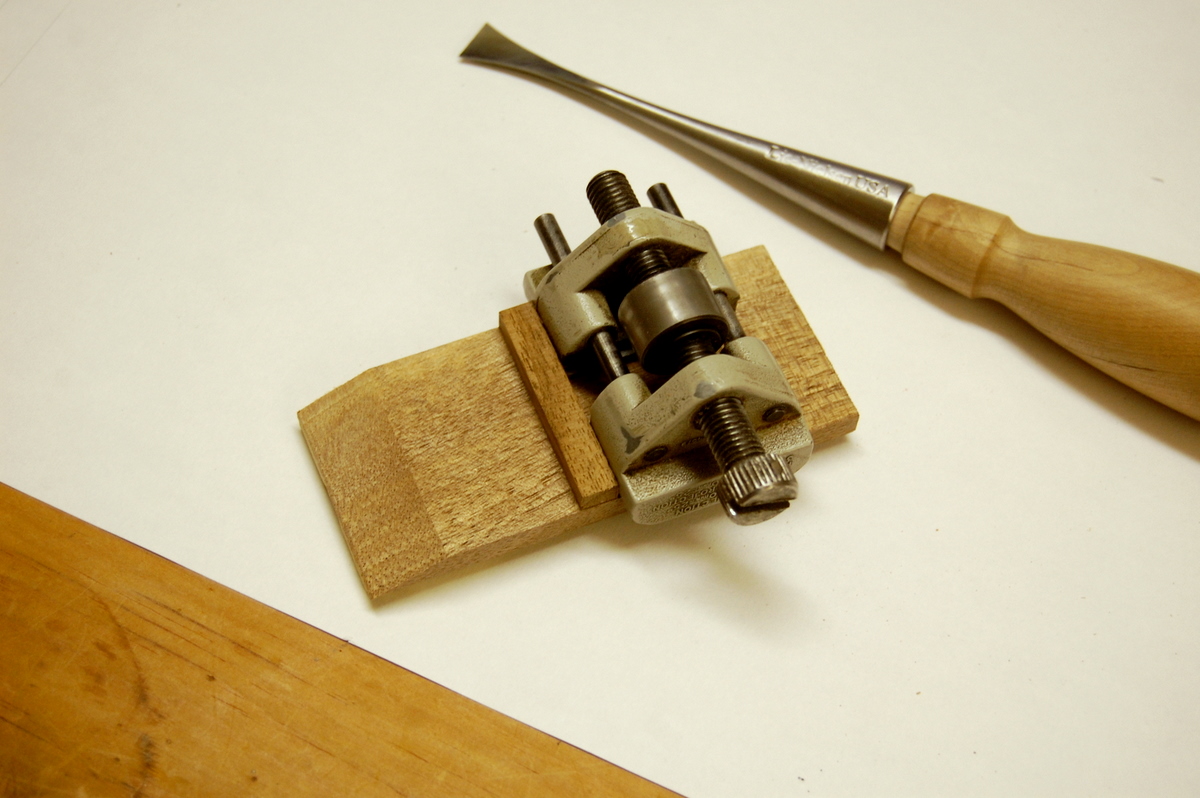

I glued a strip of wood across the underside of the mould so that it can be located in the honing jig at the same angle every time. And that’s it.





Eventually, I suppose, repeated honing will shorten the chisel and increase the angle of the secondary bevel. That will mean that it’s time to regrind the primary bevel and repeat this process to restore the angle of the secondary bevel.

A point I forgot to mention in the earlier post is that it’s worth creating a stop in the moulding at its upper end to prevent any tendency for the chisel to slide up while it’s being honed. Here you can see a stop formed by the lip that mirrors the indentation between the socket and the handle of the chisel.

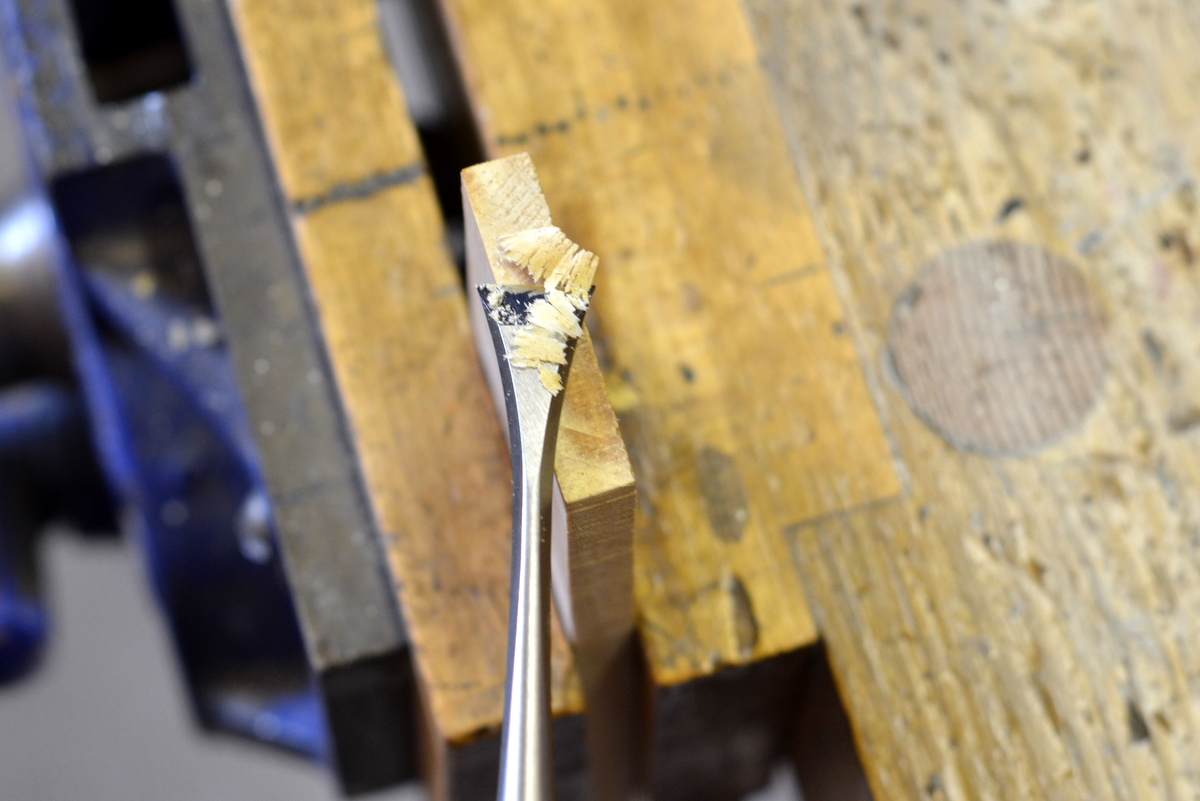

A pair of chisels reground with left and right skewed edges is almost essential for cleaning out the sockets of lap dovetails. These chisels are useful for other tasks as well – tidying up the inside of the pegbox of a violin or cello, for example. I’ve got several pairs in different sizes and, although I don’t use them everyday, there are jobs where no other tool will do.

Actually, that isn’t quite true. A fishtail chisel makes a good substitute and, because it can work into both left and right pointing corners, you only need one tool rather than a pair. Last Summer, visiting Mark Bennett in his workshop in Yorkshire (see below) I saw him using one made by Lie-Nielsen. It was such an attractive looking tool that, even though I didn’t really need it, I couldn’t resist buying one to try.

After it arrived, I honed it, maintaining the 25° angle of the original grind. Perhaps it was my lack of skill – keeping such a small bevel flat on the stone wasn’t easy – but I never managed to get it properly sharp. What’s more, the edge that I did achieve didn’t stand up to use on hardwoods.

Of course, there’s an obvious solution to both these problems: create a secondary bevel at a slightly steeper angle. Indeed, Lie-Nielsen recommend exactly that in the leaflet that comes with the chisel.

However, I was reluctant to do this freehand because, although I was sure that it would work well enough the first few times, I knew that in the long run I’d be unable to maintain the same angle. This would mean that I’d end up with a rounded secondary bevel that would require more and more honing with each sharpening to get a decent edge. And, quite apart from the extra time this would take, it’s a bad idea to hone or grind a fishtail more than absolutely necessary. There isn’t much metal there in the first place and with each grinding the cutting edge gets progressive narrower.

A honing jig would have solved the problem, except for the fact that I couldn’t make  the conical shape of the shaft of the tool  fit securely into any of the jigs in my workshop.

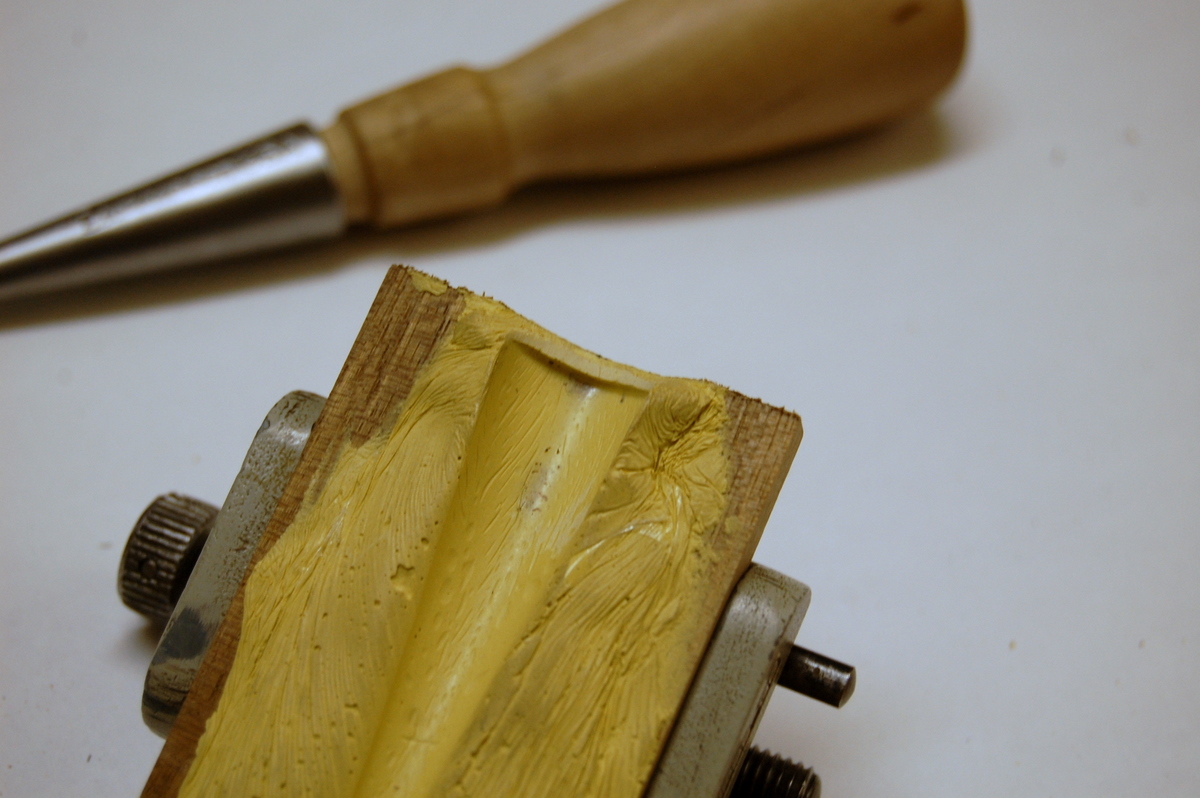

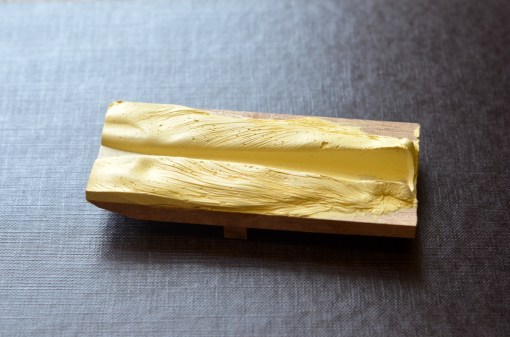

In the end, I got around this difficulty by casting a mould out of the sort of two-part wood filler that sets hard in about 30 minutes. I’ve written about this technique for holding awkwardly shaped object before (scroll down in the Tools and Jigs section of the website) so I won’t go into it in detail here. But briefly, you mix a generous quantity of the filler, spread it on a board (in this case a thin piece of wood of a size that would fit into an Eclipse honing jig), cover with a layer of cling film, and press the object you want to mould into it, holding it place with a weight or a clamp until the filler sets. Then, of course, you can take it out and get rid of the cling film.

I’m hoping that the photographs below will the idea clear:

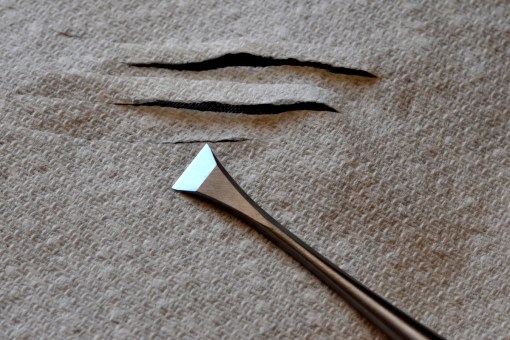

And it worked – at least for one of the objectives. The edge on the chisel was keen enough to slice soft paper towel and to pare endgrain.

Whether it will achieve the second objective of minimising attrition of the blade with repeated sharpenings is another matter. Time will tell.

A couple of years ago, I wrote about a simple device that made it easy to plane a taper on small pieces of wood – something that’s hard to do accurately if you try to hold the wood in a vice. (The piece is still available in the Tools and Jigs section of the website.) After I’d posted it, Jeff Peachey, who specialises in the conservation of books, sent me a photograph of a rather similar jig that he had made, which had the advantage of an adjustable endstop. I’ve been meaning to incorporate this modification ever since, but have only now got around to it. Below is a photograph of the original jig with a glued endstop of 1.5mm plywood.

To add a adjustable endstop, I inserted two short lengths of 6mm studding, drilling the pilot holes under size and then tapping the holes before screwing in the studding. Because the studs are inserted into endgrain, I was doubtful if they would hold so I glued them in too. And, to be doubly sure, I cross drilled the studs in situ and popped in a nail shank, the end of which is visible on the side of the jig.

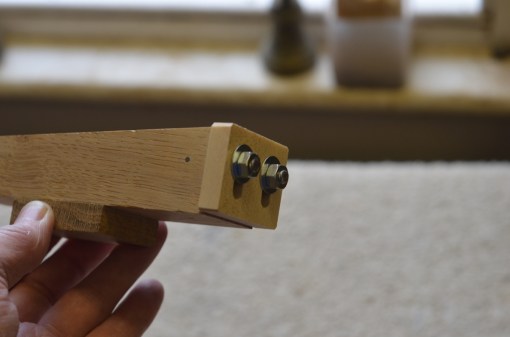

Then I cut slots in a small piece of maple to make the endstop and fixed it in place over the studs with washers and nuts.

Here is the modified jig, ready for action.

A worthwhile improvement, I think. It will be possible to match the height of the endstop to the size of the end of the wedge and, should the endstop get damaged, it will be easy to true it up again.

In the meantime, Jeff Peachey has made a much bigger and better device, which is primarily intended for planing thin boards although it can cope with wedges too. There’s photograph of it on his website here.
