Monthly Archives: October 2015

DSC_8060



In the 1930s, the Head of the School of Furniture at the Birmingham College of Arts and Crafts, Mr A Gregory, wrote two books about woodworking: The Art of Woodworking and Furniture Making, and (shown above) Constructive Woodwork for Schools¹. I bought second-hand copies years ago when I first got interested in woodwork but  I hadn’t looked at them in a long time until I got a request for a chair suitable for a young child.

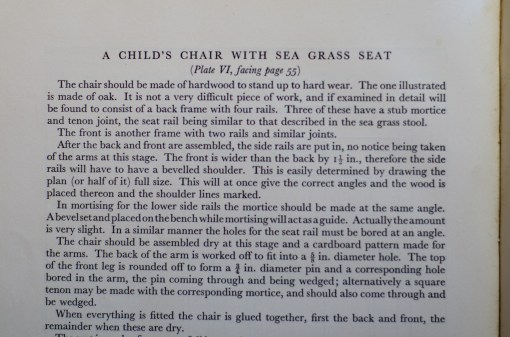

Constructive Woodwork for Schools  contained a simple design for exactly what was needed.



DSC_8057

DSC_8058



I was amused (and, as things progressed, slightly irritated) by Gregory’s remark  ‘It it is not a very difficult piece of work’.  He’s right, I suppose,  in that it’s largely mortise and tenon joinery. But there are 24 of these joints to be cut and adjusted and, because the front of the chair is wider than the back, they’re not all at right angles. The business of fitting the arms and making the doubly curved top rail isn’t completely straightforward either.  I certainly didn’t find making this chair a breeze, and I should have thought it would have been a fairly taxing task for a schoolboy. Or perhaps I’m underestimating the standard of woodworking 80 years ago?

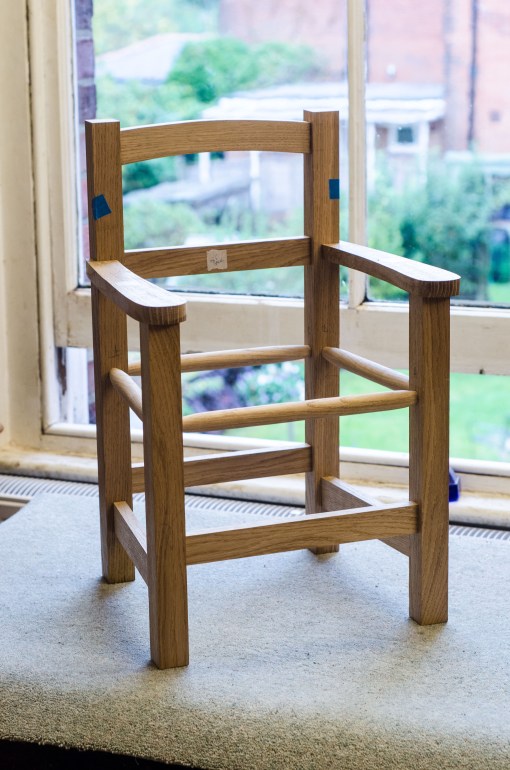

Here are the individual components and the chair assembled dry. The wood is English oak.





DSC_7995



DSC_7989



And here it is glued up and  finished with a couple of coats of Danish oil. The seat is woven out of seagrass.



DSC_8050



Happily, the client seems satisfied.



DSC_8068





¹ I assumed that these two books would have been long out of print but, in fact, new copies are still available and there are lots of reasonably priced second-hand copies on Abe Books  too.  The books may be a little dated in their approach but I thought that they were well worth reading. I recommend them, particularly The Art of Woodworking and Furniture Making, to anyone wanting to develop their skills in designing and making wooden furniture,  especially if they’re attracted to work in the tradition of  Edward Barnsley and the Arts and Crafts movement.

Advertisements

The soprano ukulele that I made from scraps of wood too nice to throw away (but too small for anything else) turned out to be a nice sounding and surprisingly loud instrument. I thought it would be fun to make another.

The classic wood for ukes is Koa, a tree in the Acacia family, which grows only in the Hawaiian archipelago, although it’s closely related to Australian Blackwood (Acacia melanoxylon) and the wonderfully named – after its smell when sawn – Raspberry Jam wood (Acacia acuminata). I was pretty sure that I remembered having a set of Koa somewhere in my stash of guitar wood and eventually I found it.

After a bit of thought, I reckoned that there would be enough material for two ukuleles – one soprano and one tenor. However, as soon as I began to clean it up with a view to book-matching fronts and backs, I ran into trouble. The Koa had a beautiful and dramatic figure, but it was very difficult to plane without causing tear out. That’s often true of highly figured woods of course, but this this was much worse than usual.

A drum sander would have solved the problem – except that I don’t have one. So I tackled it in the old fashioned way.

First I used this large scraper plane to produce a good surface on the face side of each piece before gluing them up, book-matched, for fronts and backs.



DSC_7944

DSC_7933



Now, working from the other side, I needed to get them down to a thickness of under 2mm. Fortunately, the wood had been well sawn and was only around 3mm thick so there wasn’t too much material to remove. This Krenov-type plane with a short thick blade set at an angle of 55° performed better than a plane with the usual 45° blade angle. There was still some tear out, but it did allow me to approach the final thickness without too much anxiety.

The plane was made by David Barron and it’s nicely designed with a soft rounded shape that’s comfortable to hold. It has a sole of lignum vitae and a fairly tight mouth.



DSC_7953

DSC_7956



For the really difficult patches, where the grain was running all over the place, I switched to a toothing plane. This one is a lovely old tool made by Varvill and Son, York, well over 100 years ago. It bears name stamps of two previous owners but it’s in such good condition that I suspect that more of its life has been spent in a tool chest than on the bench. It’s really intended for preparing a surface before laying veneer and, although it’s able to flatten the wildest grain without tearing it, it removes wood very slowly.



DSC_7961

DSC_7963

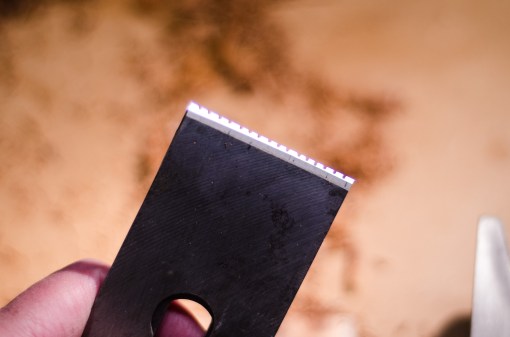

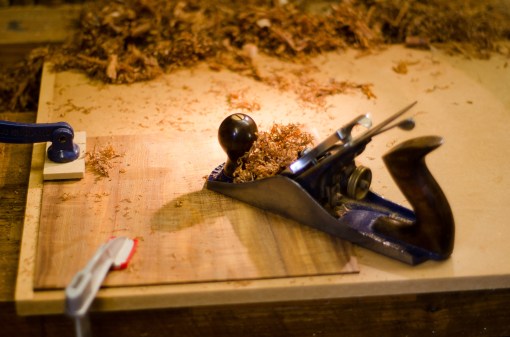

To speed things up in the less wild areas, I used an ordinary No 4 bench plane fitted with a modified blade. I’ve written about this blade before, so I won’t repeat myself except to explain that the rationale behind it is that the individual serrations are too small to grab and tear out large chunks of wayward grain while, at the same time, being wide enough to remove material fairly quickly – certainly a lot faster than the wooden toothing plane.



DSC_7939

DSC_7936



Having got close to the final thickness with this pair of toothing planes,  I finished the surface with a small Lie Nielsen scraper plane and an ordinary cabinet scraper.



DSC_7946

DSC_7947



Here’s a line up of the workhorses that I put to use.



DSC_7950



And here are fronts, backs and ribs ready to assemble.



DSC_7966
