Tag Archives: cabinet scraper

Razor blade scrapers

Among the treasure trove of information and tips and tricks at Frank Ford’s website Frets.com there’s a description of how to turn a single-edge razor blade into a miniature cabinet scraper for repairs of guitar finishes. Click here to read it.


DSC_7599



I thought that this was a really clever idea and immediately ordered a box of blades to try it out. Ford says that he draws the edge of the blade across a round piece of hard steel such as a screwdriver shank to create a fine hook just as one might finish a full size cabinet scraper.

I’m not sure why, but I couldn’t make it work. Maybe it was my technique or perhaps the steel of the blade had hardened during the sharpening process but despite repeated trials all I could produce was a ragged edge that scraped less well than a blade straight from the box.



The solution was first to grind off the bevelled edge of the blade;



DSC_7600



then to make the blade edge straight and square on a diamond stone;



DSC_7603



and finally to turn a hook with a burnisher in the usual way.



DSC_7606



These little scrapers work extremely well if you need to remove polish or varnish and they’re easy to re-sharpen.



DSC_7598

Toothed blade for planing difficult wood

A while ago, I wrote about using a Millers Falls scraper plane to cope with some highly figured cocobolo that I was using for the back of a guitar. It’s an excellent tool for finalising the thickness and it leaves a clean finish even on the most awkward wood. The disadvantage however, is that it takes only the thinnest of shavings so if you’re starting with wood that’s way too thick, you’re in for a lot of time and effort to get to the right final dimensions.

Of course, the usual way to get around the problem is to run the wood through a drum sander. But I haven’t got one, partly because there isn’t room for it in my small workshop and partly because I’m allergic to sandpaper. I don’t mean it literally – I don’t come out in a rash if I touch the stuff – but I do think that there are nicer and quieter ways of shaping wood than grinding it into dust.

Another solution is to use a plane with a toothed blade. This won’t eliminate tear out completely but, should it happen, it’s limited and shallow and can easily be dealt with by a scraper later. Toothed blades work because the individual teeth are too small to grab enough fibres running in the wrong direction to rip out a large lump.

I use a No 4 Record bench plane fitted with a standard blade that I modified to look like this. Put the blade in the vice, cutting edge upward. Take a cold chisel and, against all your instincts, hammer a small gap into the cutting edge every 3 or 4 mm. Then sharpen the blade in the usual way.

DSC_0022

Another way of cutting the teeth is to use a thin grinding wheel in a Dremmel.

DSC_0007-1

Here are a couple of pictures of a guitar back in zebrano being thicknessed with the toothed blade. If you’ve ever used this wood, you’ll know that the interlocked grain structure makes it very hard to work. With a toothed blade and a wipe of wax on the bottom of the plane, the task becomes a pleasure.

DSC_0019

The marks left by the toothed blade are just visible running diagonally from bottom right to top left. And you can see the linguine-like shavings that are produced.

DSC_0017

Switching over to the scraper plane for final adjustment of the thickness and to remove the corrugations left by the toothed blade.

DSC_0029

Scraper plane

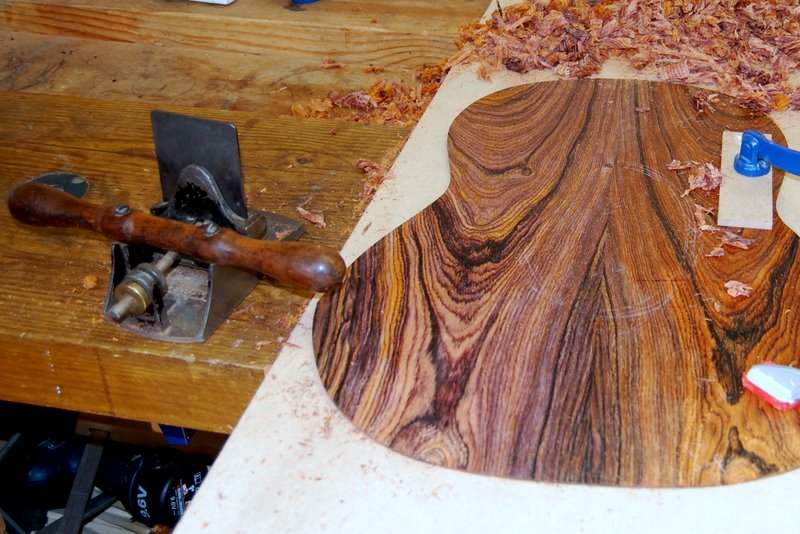

The cocobolo guitar back that I showed in an earlier post is now jointed and I spent some time yesterday bringing it down to a thickness of just over 2 mm. The grain of the two halves runs in opposite directions after ‘book-matching’, which makes it difficult to avoid tearout along the centre join. And even without that, cocobolo is hard and difficult to deal with. The tool that solves these problems is my Millers Falls scraper plane.

I bought it several years ago in a second hand tool shop and never found it worked well enough to be useful until I replaced its thin cabinet scraper blade with a thicker one from Ron Hock. This transformed its performance and, although I suppose you could do the job with a cabinet scraper by hand, I now think of it as an indispensable tool.

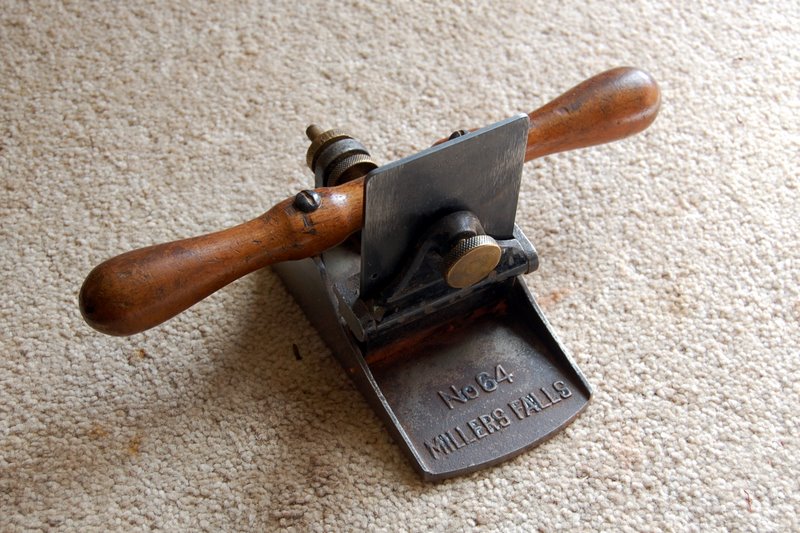

Since it works with a negative cutting angle, a scraper plane doesn’t remove much material at a time. So, if you’re starting with wood that is way too thick, you need something that’s faster, even if it leaves a rougher finish, to get down to somewhere near the final thickness before switching to the scraper plane. A good tool for that is a smoothing plane fitted with a modified (toothed) blade but I’ll save that discussion for another post. Pictures of the scraper plane below.
